Hierarchical Multi-Agent Reinforcement Learning with Control Barrier Functions for Safety-Critical Autonomous Systems

H. M. Sabbir Ahmad1, Ehsan Sabouni1, Alexander Wasilkoff1, Param Budhraja1, Zijian Guo1, Songyuan Zhang2, Chuchu Fan2, Christos Cassandras1, Wenchao Li1
1Boston University    2Massachusetts Institute of Technology
Paper (PDF) arXiv

HMARL-CBF: Hierarchical skills with CBF-backed safety.

HMARL-CBF MetaDrive Environments

Abstract

We address the problem of safe policy learning in multi-agent safety-critical autonomous systems, where each agent must satisfy safety requirements at all times while cooperating to accomplish the task. We propose a safe Hierarchical Multi-Agent Reinforcement Learning (HMARL) approach based on Control Barrier Functions (CBFs). Our hierarchical method decomposes the problem into two levels: a high-level policy that learns joint cooperative behavior over skills/options, and a low-level policy that executes those skills safely with CBFs. We validate our approach on challenging scenarios in which many agents must safely navigate conflicting road networks. Compared with state-of-the-art methods, HMARL-CBF achieves near-perfect (≥ 95%) success/safety rates while also improving performance across environments.

Problem Definition

Problem Definition

We consider the multi-agent constrained optimal control problem with discrete-time, unknown dynamics, partial observability, input constraints, and without a known performant nominal policy. Given \(N\) agents, we aim to design distributed policies \(\pi_1, \dots, \pi_N\), such that:

The task is done:

\[ \min_{\pi_1,\dots,\pi_N} \sum_{k=0}^{\infty} l(\mathbf{x}^k, \boldsymbol{\pi}(\mathbf{x}^k)), \]

following the unknown dynamics:

\[ \mathbf{x}^{k+1} = f(\mathbf{x}^k, \boldsymbol{\pi}(\mathbf{x}^k)), \]

and the agents are safe:

\[ h_i^{(m)}(o_i^k) \le 0, \quad o_i^k = O_i(\mathbf{x}^k). \]

HMARL-CBF Overview

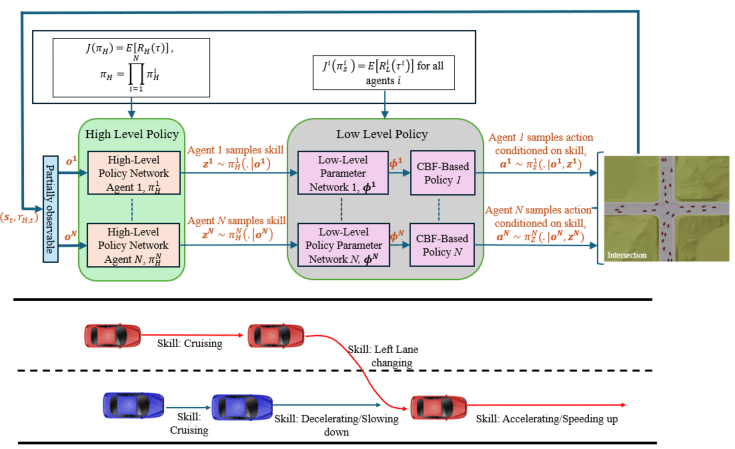

HMARL-CBF block diagram

The high-level policy selects skills for agents (CTDE), while the low-level CBF-based controller executes skills safely via a per-step QP with affine CBF constraints (and optional CLF terms). This combines sample efficiency, decentralized execution, and pointwise safety guarantees.

Results

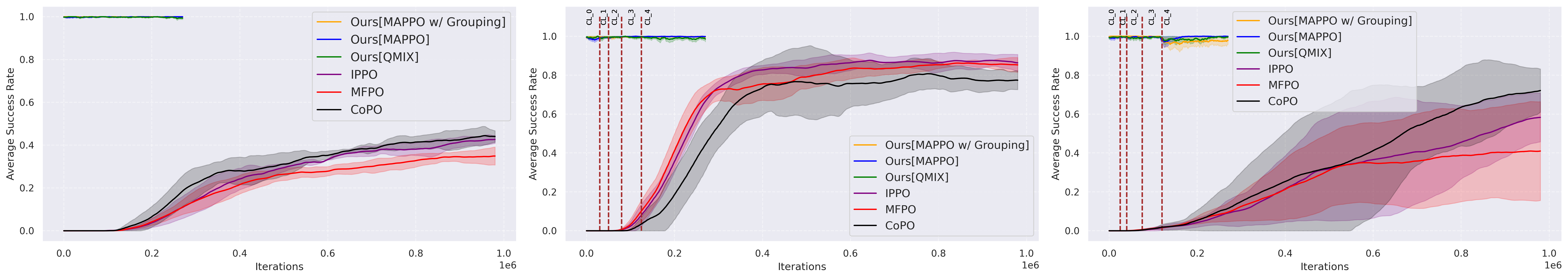

Success Rate Results

Success Rate: HMARL-CBF achieves high task completion and safety consistency across environments.

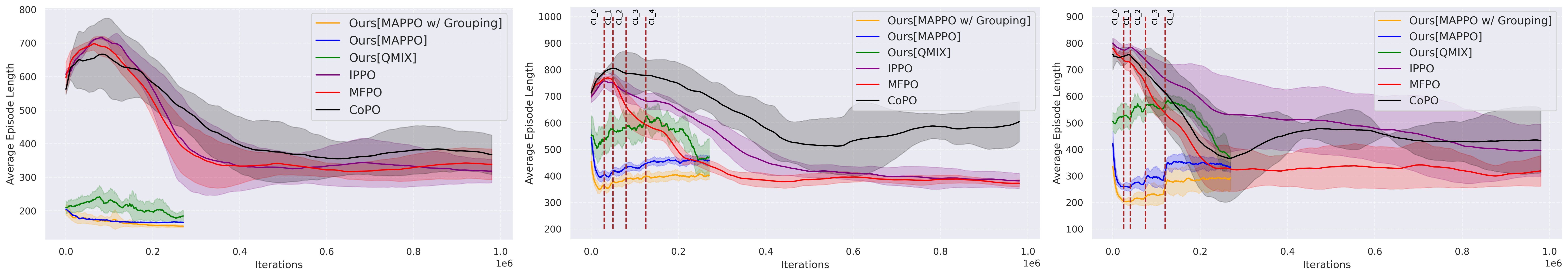

Episode Length Results

Episode Length: Efficient convergence with reduced completion times compared to baselines.

BibTeX

@article{ahmad2025hmarlcbf,
  title={Hierarchical Multi-Agent Reinforcement Learning with Control Barrier Functions for Safety-Critical Autonomous Systems},
  author={Ahmad, H. M. Sabbir and Sabouni, Ehsan and Wasilkoff, Alexander and Budhraja, Param and Guo, Zijian and Zhang, Songyuan and Fan, Chuchu and Cassandras, Christos and Li, Wenchao},
  journal={arXiv preprint arXiv:2507.14850},
  year={2025},
  url={https://arxiv.org/abs/2507.14850v2}
}
